Pumps
New

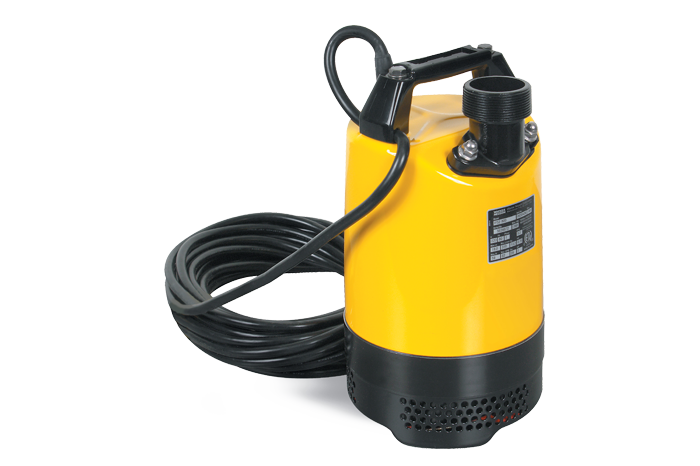

2020 Wacker Neuson PS3 1500
In Stock
Call for pricing
Description
No matter how large or small the job, Wacker Neuson's single-phase submersible pumps offer the versatility and durability contractors need for light dewatering on the job site. This comprehensive family of pumps offers big pump features for a small pump investment.
Features
- These high performance single-phase submersible pumps are capable of handling solids up to .4 inches, ideal for job sites needing fast dependable dewatering.
- Lightweight, compact design with heavy-duty strain relief power cord offers a highly durable pump that is still easy to transport and install.
- Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
- Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.
- PST models feature shaft-mounted agitators which suspend solids when pumping sand and debris. Built with ductile iron hosing for excellent wear life when pumping water with some entrapped solids.
Specifications
Engine
| Engine / Motor Type | 60 Hz 1~ |
| At Engine RPM rpm | 3,440 |
Operational
| Operating voltage V | 110 / 220 V |
| Discharge capacity US gpm | 111 gpm |
| Cable length ft | 32 ft |
| Cable Size AWG | 12 |
| Current Full Load A | 23 / 11.5 A |
| Current Start A | 136 / 68 A |
| Diameter Discharge in | 3 in |
| Solids diameter in | 0.334 in |
| Total head ft | 68.9 ft |
Dimensions
| Operating weight kg | 28.8 |
| Operating weight lb | 63.5 |
| L x W x H mm | 240 x 240 x 571 |
| Shipping weight kg | 35 |
| L x W x H in | 9.45 x 9.45 x 22.48 |
| Shipping weight lb | 78 |
| L x W x H Shipping mm | 343 x 330 x 711 |
| L x W x H Shipping in | 13.5 x 13 x 28 |
