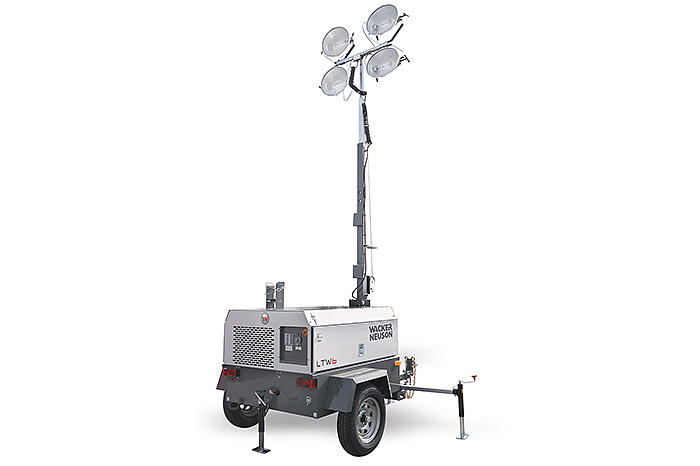

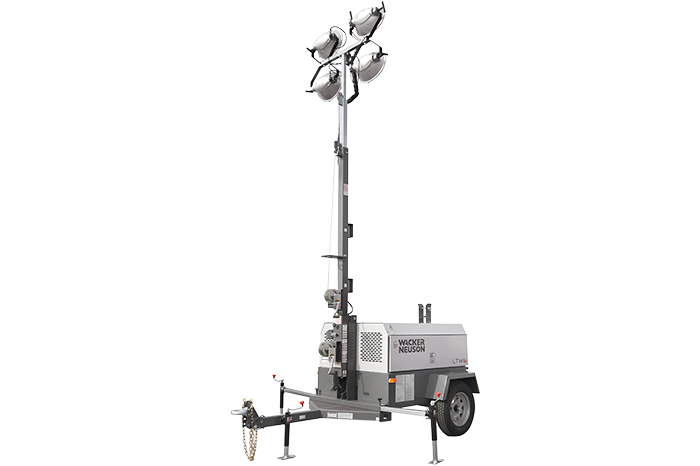

2020 Wacker Neuson LTW20Z-1 T4F
In Stock
Call for pricing
Description
The LTW series of wide-body light towers combine superior job site lighting with various power options up to 20kW in a rugged, heavy duty steel frame. Wide track width, independent torsion axles and a heavy duty tongue and hitch assembly ensure reliable off-road towing. The 30-foot adjustable tower rotates 360-degrees for optimum lighting flexibility. Equipped with large fuel tanks and simple engine controllers, these units are ideal for illuminating and powering remote and/or long run applications such as mining, security and disaster as well as general job sites.
Features
- Elliptical light fixtures offer excellent job site illumination that is diffused and more uniform without the harsh spotlight effect of standard light fixtures.
- Lockable, heavy-gauge steel doors are full length providing maximum accessibility for easy service. Heavy-gauge steel skid provides full protection from ground debris.
- Four-point jack stands for easy leveling, stability on uneven terrain and superior wind stability.
- Mast-mounted base wince can be cranked while the operator is standing (eliminates bending) for improved ergonomics and easy operation.
- Fully equipped highway ready trailer offers a 3-inch pintle hitch, 15-inch tires, four tie downs, DOT lighting, VIN number and chains.
Specifications
Engine
| Engine / Motor Manufacturer | Isuzu |
| Engine / Motor Type | Liquid-cooled 4-cylinder |
| Displacement in³ | 133 in3 |
| At Rpm rpm | 1,800 rpm |
| At Engine RPM rpm | 1,800 |
| Fuel consumption Prime Load US gal/h | 1.58 gal per h |
| Tank capacity Fuel US gal | 57 gal |
| Fuel type | Diesel #2 - ULSD |
| Tank capacity Oil US qt | 11 qt |
| Operating performance hp | 40 hp |
| Rated performance | SAE J1349 NET (w/o Fan) |
| Tank capacity Fuel l | 215.8 |
| Tank capacity Oil l | 10.4 |
Operational
| Frequency Hz | 60 |
| Generator insulation (class) | H |
| Generator model | Brushless w/AVR |
| Idle to full load % | 1 |
| Illumination coverage at 5 fc (54 lux) ft² | At 5fc (54lux): 12,960 ft2 |
| Illumination coverage at 5 fc (54 lux) m² | 1,204 |
| Lamp type | Metal Halide |
| Mast height ft | 30 ft |
| Power kW | 18.6 |
| Power factor cos phase 1 | 1 |
| Power factor cos Phi 1~ | 1 |
| Runtime Prime Load h | 34.8 h |
| Sound level (LwA) at 23 ft (7 m) dB(A) | 69.2 dB(A) |
| Voltage V | 120 / 240 V |
| Voltage control % | 0.5 |
Dimensions
| Operating weight kg | 1,493 |
| Operating weight lb | 3,290 |
| L x W x H mm | 4490 x 1920 x 1900 |
| Shipping weight kg | 1,306 |
| L x W x H in | 177 x 75.5 x 74.5 |
| Mast height m | 9 |
| Shipping weight lb | 2,880 |
